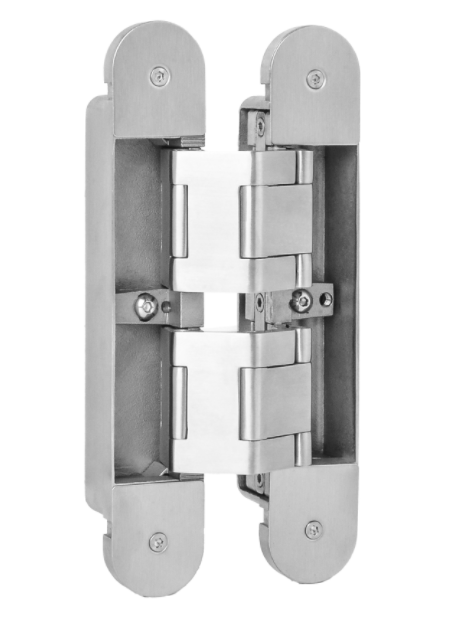

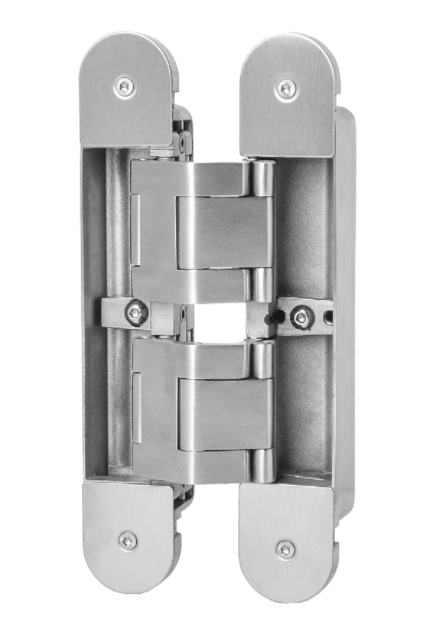

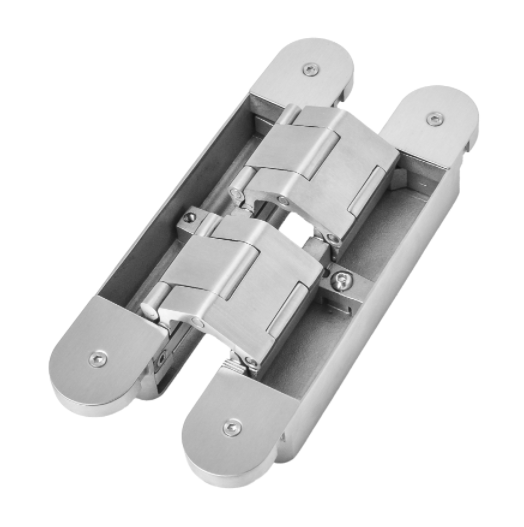

180 Degree Open 3D Invisible Folding Concealed Door Hinge CHC80-2
Concealed Hinges
-
+86-13422753832 WhatsApp
-
sales@strumindah.com Email
Product Advantages:
Fully Concealed Design: Hidden hinge for a sleek, modern door appearance.
Strong Load Capacity: Supports doors up to 80kg with door closer and EN 1935-certified durability.
Fire-Safe Construction: Stainless steel 304 for corrosion resistance and fire-rated use.
3D Adjustable: Easy side, height, and depth fine-tuning post-installation.
Quick, Hassle-Free Installation: Two-screw adjustment, no disassembly required.
Secure Positioning: Locking mechanism keeps hinge adjustments securely in place.
Smart Cutout Design: Central cutout suits 40–45 mm door thickness.
Universal Frame Fit: Compatible with wood, steel, and aluminum frames.
Product Parameters:
| Model | CHC80-2 |
| Material | SS304 |
| Load capacity (two hinges per door leaf) | 80kg |
| Overall length | 163.7mm |
| Width (frame part) | 28.5mm |
| Width (door part) | 28.5mm |
| Cutting depth (frame part) | 24mm |
| Cutting depth (door part) | 27mm |
| Opening angle | 180° |
| Minimum door thickness (timber door) | 40mm |
| Minimum door thickness (steel door) | 35mm |
Package and Delivery:
| MOQ | 100 PCS |
| Sample Lead Time | 5-7 days |
| Production Lead Time | 30-35 days |
| Package | 2 PCS/inner box in export master carton |
| Shipping Port | Jiangmen/Shenzhen, China |
| Customization Options | Customized Design Customized Logo Customized Packaging |

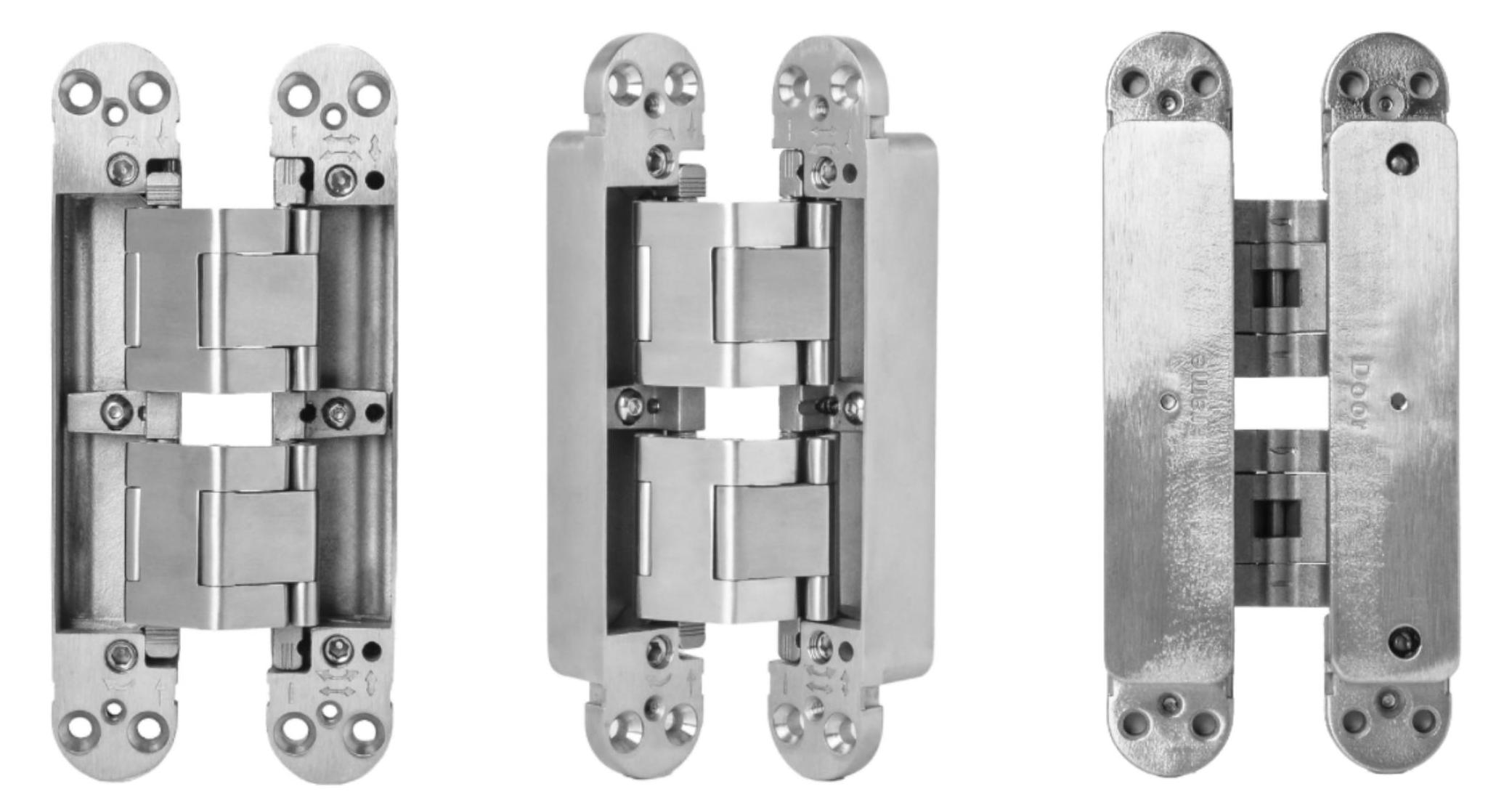

Product Design:

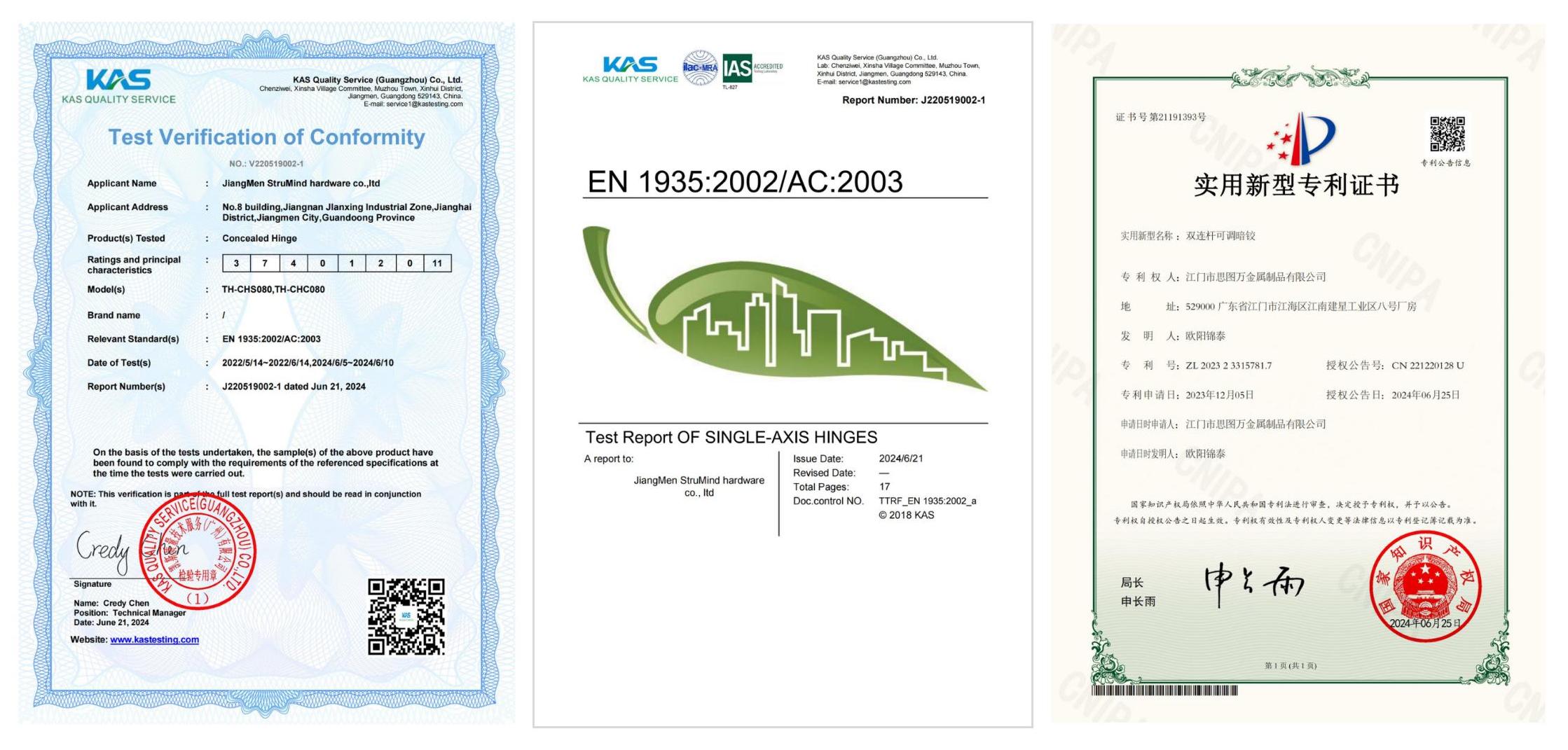

Certification:
Company Profile:
Strumind specializes in high-quality architectural hardware through expert design, development, and manufacturing. With an experienced engineering team, we offer tailored OEM/ODM solutions that meet international standards. Our patented designs ensure innovation and reliability, supported by comprehensive technical services to help customers achieve seamless implementation and optimal performance.
Powerful R&D Capabilities
Experienced engineers specializing in architectural hardware innovation and design optimization
Product development driven by market trend and addressing customer pain points
Patented product design and flexible customized product solutions
Strong Production Capabilities
Flexible in-house manufacturing with complete machining and assembly capabilities
Efficient production ensures stable quality in every batch
Fast delivery to meet diverse and dynamic market demands
Comprehensive Quality Control
ISO 9001:2015 certified quality management system
Strict in-house testing for durability and performance
Third-party lab tested to meet international standards
Contact Us Now:
STRUMIND respond quickly to customer needs and provide customized design solutions. Our technical team has rich experience and knowledge in the European and American standards of architectural hardware products, flexible use of 3D printer technology, CNC machine tool technology, laser cutting technology and other technologies to shorten the development cycle.
We have in-depth communication with customers, fully understand customer needs and expectations, and provide a full range of services from product design, material selection, production and processing to after-sales service.
