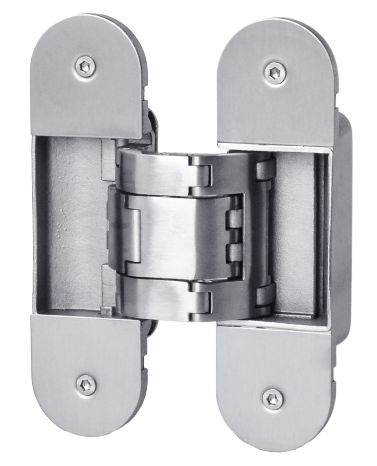

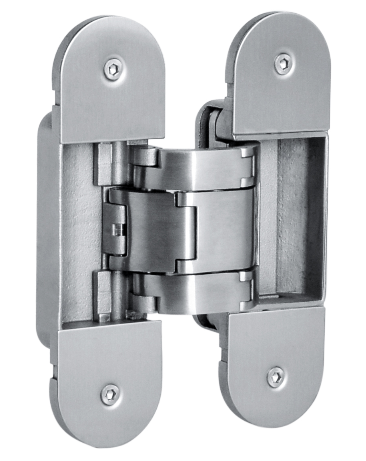

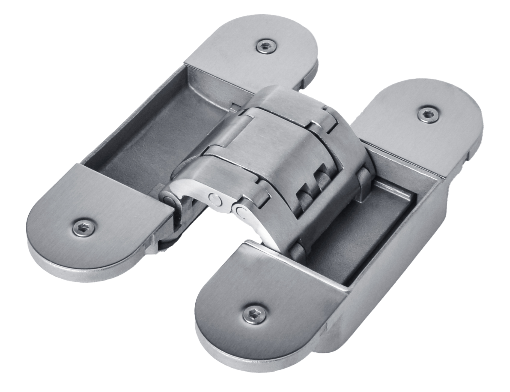

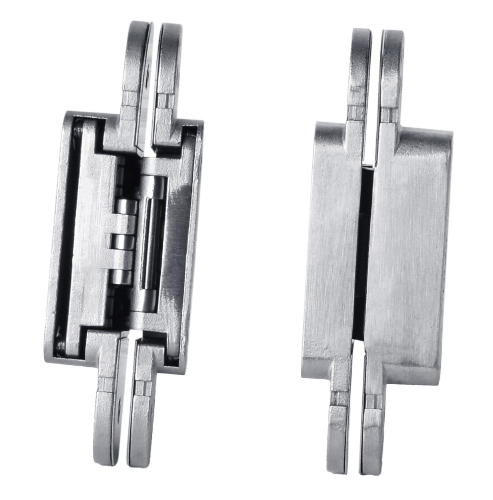

Modern Flush Door 3D Adjustable Concealed Hinge CHC60B
Concealed Hinges
-
+86-13422753832 WhatsApp
-
sales@strumindah.com Email
Product Advantages:
Fully Concealed Design: Hidden hinge for a sleek, minimalist door appearance.
Certified Durability: EN 1935 tested for lasting performance on unrebated doors.
Fire-Rated Construction: Stainless steel 304, compliant for fire-rated door use.
3D Adjustability: Easy side, height, and compression adjustments after installation.
Easy Adjustment: Quick two-screw alignment without removing hinge or door.
Secure Positioning: Locking mechanism keeps hinge adjustments securely in place.
Smart Cutout Design: Central cutout suits 40–45 mm door thickness.
Versatile Application: Fits timber, steel, and aluminum frames with ease.
Ultra-Slim Profile: Minimal cutting to protect both frame structure and aesthetic finish.
Product Parameters:
| Model | CHC60 |
| Material | SS304 |
| Load capacity (two hinges per door leaf) | 60kg |
| Overall length | 106.5mm |
| Width (frame part) | 30mm |
| Width (door part) | 30mm |
| Cutting depth (frame part) | 13mm |
| Cutting depth (door part) | 18mm |
| Opening angle | 180° |
| Minimum door thickness (timber door) | 40mm |
| Minimum door thickness (steel door) | 35mm |
Package and Delivery:
| MOQ | 100 PCS |
| Sample Lead Time | 5-7 days |
| Production Lead Time | 30-35 days |
| Package | 2 PCS/inner box in export master carton |
| Shipping Port | Jiangmen/Shenzhen, China |
| Customization Options | Customized Design Customized Logo Customized Packaging |

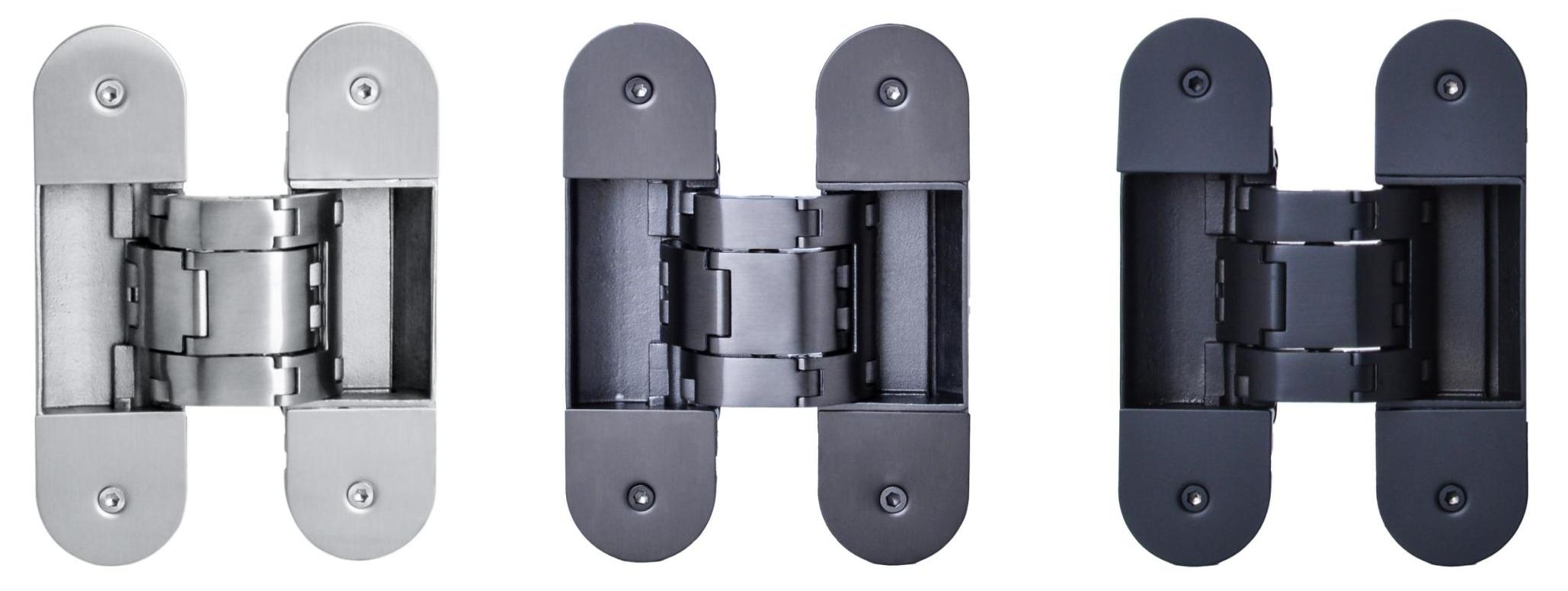

Color Options:
Certification:
Company Profile:
Strumind specializes in high-quality architectural hardware through expert design, development, and manufacturing. With an experienced engineering team, we offer tailored OEM/ODM solutions that meet international standards. Our patented designs ensure innovation and reliability, supported by comprehensive technical services to help customers achieve seamless implementation and optimal performance.
Powerful R&D Capabilities
Experienced engineers specializing in architectural hardware innovation and design optimization
Product development driven by market trend and addressing customer pain points
Patented product design and flexible customized product solutions
Strong Production Capabilities
Flexible in-house manufacturing with complete machining and assembly capabilities
Efficient production ensures stable quality in every batch
Fast delivery to meet diverse and dynamic market demands
Comprehensive Quality Control
ISO 9001:2015 certified quality management system
Strict in-house testing for durability and performance
Third-party lab tested to meet international standards
